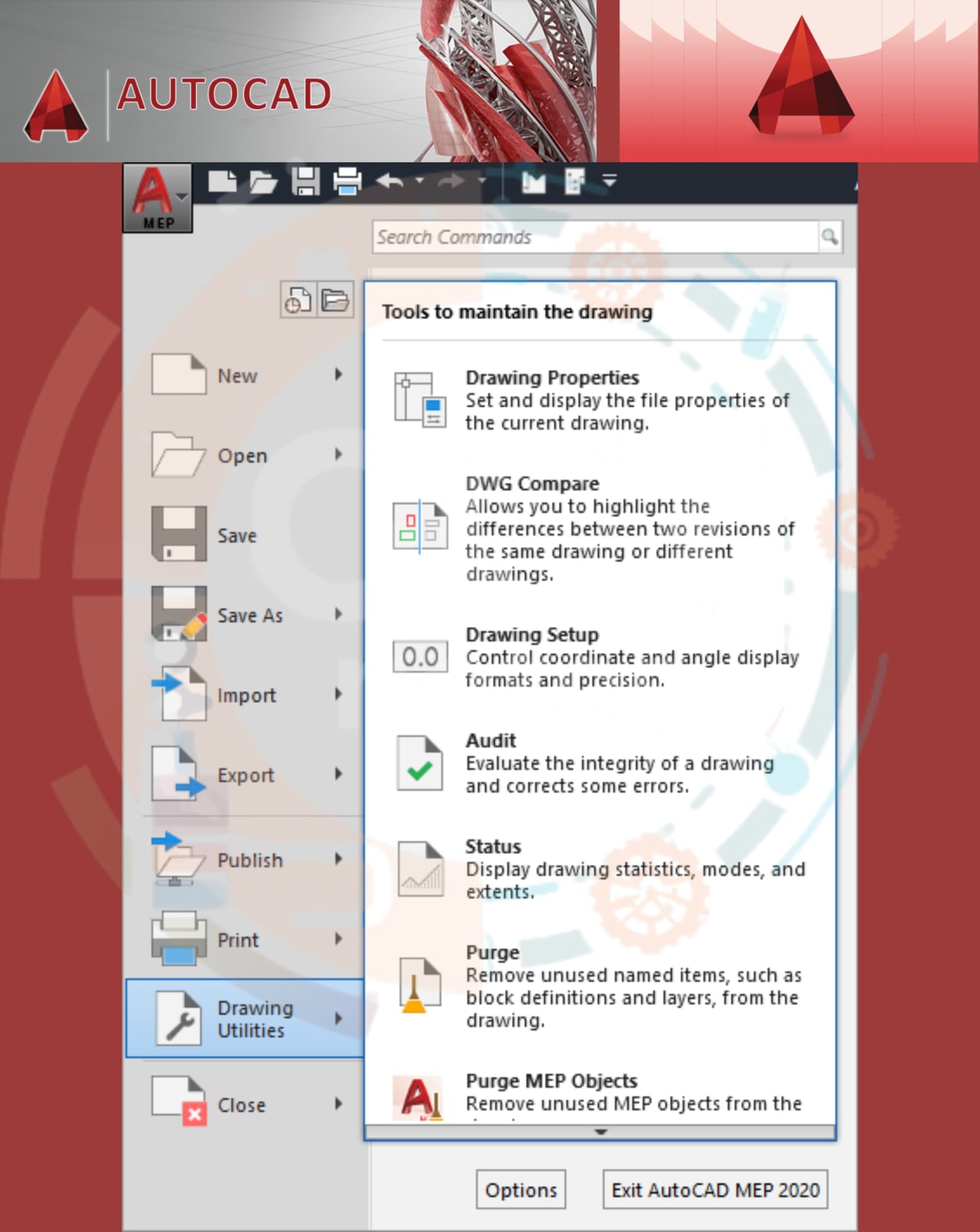

- Q1: What is a Layout in AutoCAD?Ans: A Layout in AutoCAD is a workspace used for plotting and printing drawings.
It represents how the drawing will appear on paper. - Q2: What is a Drawing Frame in AutoCAD?Ans: A Drawing Frame is a border drawn around the drawing area.
It defines the limits of the drawing sheet and gives a proper presentation. - Q3: How do you create a Layout in AutoCAD?Ans: Steps to create a Layout:
➔ Click on the Layout tab at the bottom
➔ Right-click and select New Layout
➔ Set page setup and paper size
➔ Insert viewports
➔ Place drawing inside the layout - Q4: How do you create a Drawing Frame in AutoCAD?Ans: Steps to create a Drawing Frame:
➔ Use Rectangle command
➔ Specify first corner point
➔ Specify opposite corner point
➔ Adjust size according to sheet - Q5: How do you create a template in AutoCAD?Ans: Steps to create a template:
➔ Create a new drawing
➔ Set units, layers, and styles
➔ Add title block and layout
➔ Click Save As
➔ Choose file type as Template (.dwt)
➔ Save the file - Q6: What is a Template in AutoCAD?Ans: A Template is a pre-defined drawing file with standard settings.
It helps to start new drawings quickly with the same format. - Q7: How do you set the limits of a Drawing sheet in AutoCAD?Ans: Steps to set drawing limits:
➔ Type LIMITS and press Enter
➔ Specify lower left corner (usually 0,0)
➔ Specify upper right corner (sheet size)
➔ Type ZOOM → All to view limits - Q8: State different methods to add a new template in AutoCAD.Ans: Methods to add a new template:
- ➔ Using Save As Template option
- ➔ Creating from an existing drawing
- ➔ Downloading template files
- ➔ Using default AutoCAD templates
- Q9: Define Drawing Limits.Ans: Drawing Limits define the working boundary of the drawing area.
They set the maximum and minimum points of the drawing sheet. - Q10: Why is it necessary to add Title Block to your drawings?Ans: Title Block is necessary because:
- ➔ It provides drawing information
- ➔ Shows name, date, and scale
- ➔ Helps in identification
- ➔ Gives professional appearance
- Q11: Name four elements of the Title Block.Ans: Four elements of Title Block are:
- ➔ Drawing Title
- ➔ Name of Designer
- ➔ Date
- ➔ Scale
