SHAFTS AND COUPLINGS

Other Chapters

• Q1: Define Shafts.
  Ans: Shafts are rotating machine elements used to transmit power and torque from one part of a machine to another.
  They also support rotating parts like gears, pulleys, and wheels.
• Q2: State the standard length of a shaft.
  Ans: The standard length of a shaft varies depending on the application, but for general purposes, it is usually between 1.5 m to 6 m.
• Q3: Define Couplings.
  Ans: Couplings are mechanical devices used to connect two shafts together to transmit torque and rotation from one shaft to another.
• Q4: State four uses of couplings.
  Ans: The uses of couplings are as follows:

  • ➔ To connect two shafts together
  • ➔ To transmit power and torque
  • ➔ To accommodate misalignment between shafts
  • ➔ To protect shafts from overload
• Q5: Define Axle.
  Ans: An axle is a non-rotating shaft that supports rotating wheels or gears.
  It mainly bears the weight of the machine or vehicle.
• Q6: Why is torque not produced in an axle?
  Ans: Torque is not produced in an axle because it does not transmit power; it only supports the load and allows rotation of wheels or gears.
• Q7: Define Spindle.
  Ans: A spindle is a short shaft that carries gears, pulleys, or cutting tools in machines.
  It rotates and transmits motion or power.
• Q8: Name the materials used for Shafts.
  Ans: The materials used for shafts are as follows:

  • ➔ Mild steel
  • ➔ Carbon steel
  • ➔ Alloy steel
  • ➔ Stainless steel
  • ➔ Cast iron (for light-duty shafts)
• Q9: Briefly explain the manufacturing of Shafts.
  Ans: Shafts are usually manufactured by the following steps:
  1. Forging or casting to get the basic shape
  2. Machining operations like turning, grinding, and drilling to achieve precise dimensions
  3. Heat treatment to improve strength and hardness
  4. Surface finishing for smooth rotation
• Q10: Name the types of Shafts.
  Ans: The types of shafts are as follows:

  • ➔ Transmission Shafts
  • ➔ Machine Shafts
  • ➔ Axles
  • ➔ Spindles
• Q11: Define Transmission Shafts.
  Ans: Transmission shafts are shafts used to transmit power from the engine or motor to other machine elements.
  Examples include line shafts, counter shafts, and jack shafts.
• Q12: Define Machine Shafts.
  Ans: Machine shafts are shafts that form an integral part of a machine and are used to support rotating parts such as pulleys, gears, or cams.
• Q13: Write the standard sizes of Transmission Shafts.
  Ans: The standard sizes of transmission shafts are usually in diameters ranging from 25 mm to 120 mm depending on torque and power requirements.
• Q14: Enlist the stresses in Shafts.
  Ans: The stresses in shafts include:

  • ➔ Torsional stress due to torque
  • ➔ Bending stress due to transverse loads
  • ➔ Combined stress due to bending and torsion
• Q15: Define Solid Shafts.
  Ans: Solid shafts are shafts made of a single solid piece of material.
  They are simple in construction and stronger than hollow shafts of the same diameter.
• Q16: Define Hollow Shafts.
  Ans: Hollow shafts are shafts with a central hole along their length.
  They are lighter in weight but can transmit almost the same torque as solid shafts of the same material.
• Q17: What is Guest’s Theory?
  Ans: Guest’s theory is a method used to calculate the strength of shafts subjected to combined bending and torsion.
  It assumes that the maximum distortion energy is proportional to the failure.
• Q18: What is Rabin's Theory?
  Ans: Rabin’s theory is a method to determine shaft strength under combined bending and torsion using maximum shear stress criterion.

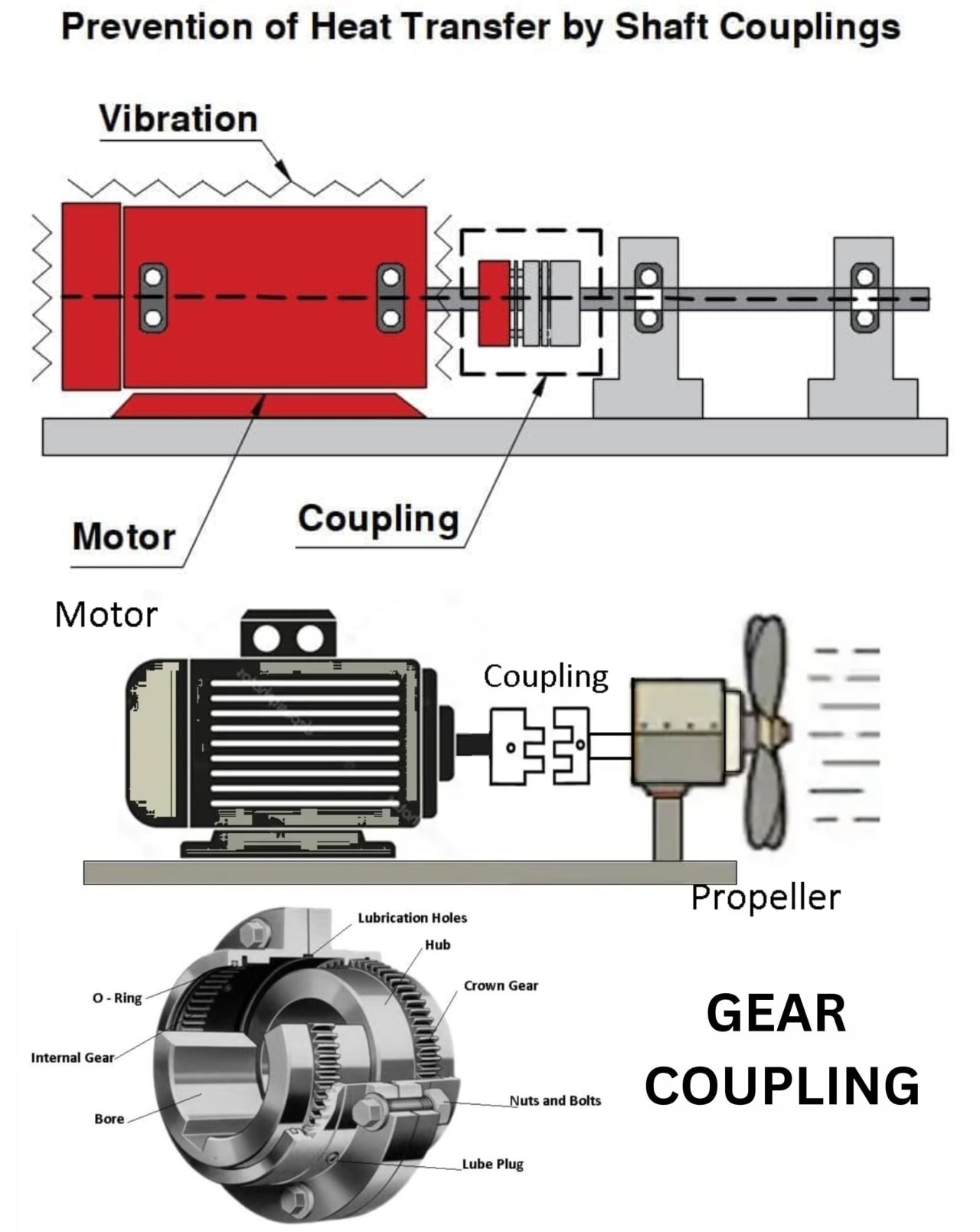

• Q19: What is Shaft Coupling?
  Ans: Shaft coupling is a mechanical device used to connect two shafts together for transmitting power from one shaft to another.
• Q20: State the requirements of a good Shaft Coupling.
  Ans: The requirements of a good shaft coupling are as follows:

  • ➔ Should transmit maximum torque without slipping
  • ➔ Should accommodate misalignment
  • ➔ Should be easy to assemble and disassemble
  • ➔ Should have minimum backlash and wear
  • ➔ Should be strong and durable
• Q21: State the types of Shaft Coupling.
  Ans: The types of shaft coupling are as follows:

  • ➔ Rigid Coupling
  • ➔ Flexible Coupling
  • ➔ Universal Coupling
  • ➔ Bush Pin Type Coupling
• Q22: Define Rigid Coupling.
  Ans: Rigid coupling is a type of coupling used to connect two shafts in such a way that there is no relative movement between them.
  It is used when perfect alignment of shafts is required.
• Q23: State the types of Rigid Coupling.
  Ans: The types of rigid coupling are as follows:

  • ➔ Muff Coupling
  • ➔ Flange Coupling
  • ➔ Clamp Coupling
• Q24: Define Muff Coupling.
  Ans: Muff coupling is a rigid coupling in which a hollow cylinder (muff) is placed over the ends of two shafts and secured with keys.
  It transmits torque without allowing any misalignment.
• Q25: Define Flange Coupling.
  Ans: Flange coupling is a rigid coupling in which flanges are attached to the ends of the shafts and bolted together to transmit torque.
• Q26: State the types of Flange Coupling.
  Ans: The types of flange coupling are as follows:

  • ➔ Unprotected Type Flange Coupling
  • ➔ Protected Type Flange Coupling
  • ➔ Marine Type Flange Coupling
• Q27: Define Unprotected Type Flange Coupling.
  Ans: Unprotected type flange coupling is a simple flange coupling without any guard or cover to protect the bolts and nuts.
• Q28: Define Protected Type Flange Coupling.
  Ans: Protected type flange coupling is a flange coupling in which a guard is provided to cover the bolts and nuts for safety.
• Q29: Define Marine Type Flange Coupling.
  Ans: Marine type flange coupling is a heavy-duty flange coupling used in ships.
  It is designed to withstand high torque and provide maximum safety.
• Q30: Define Clamp Coupling.
  Ans: Clamp coupling is a rigid coupling in which two halves are clamped over the shafts using bolts.
  It is easy to assemble and disassemble.
• Q31: Define Flexible Coupling.
  Ans: Flexible coupling is a type of coupling that allows some misalignment between connected shafts and absorbs shocks or vibrations during torque transmission.
• Q32: State the types of Flexible Coupling.
  Ans: The types of flexible coupling are as follows:

  • ➔ Pin Type Flexible Coupling
  • ➔ Bush Pin Type Coupling
  • ➔ Universal Coupling
• Q33: Define Universal Coupling.
  Ans: Universal coupling is a flexible coupling used to connect two shafts at an angle and transmit motion between them.
  It is commonly used in automobile drive shafts.
• Q34: Define Bush Pin Type Coupling.
  Ans: Bush pin type coupling is a flexible coupling in which a bush and pin arrangement connects the shafts.
  It allows slight misalignment and absorbs shock.
• Q35: State the formula of the Torque produced in a Shaft.
  Ans: Torque in a shaft, T, is given by:
  T = W × r
  Where W = Force applied (N)
  r = Radius of the shaft (m)
• Q36: State the formula of the Torque produced in Hollow Shaft.
  Ans: Torque in a hollow shaft, T, is given by:
  T = (π/16) × τ × (d_o⁴ - d_i⁴) / d_o⁴
  Where τ = Shear stress
  d_o = Outer diameter
  d_i = Inner diameter
• Q37: State the formula of the Bending Moment produced in Hollow Shaft.
  Ans: Bending moment in a hollow shaft, M, is given by:
  M = (π/32) × σ × (d_o⁴ - d_i⁴) / d_o² + d_i²
  Where σ = Bending stress
• Q38: State the formula of the Bending Moment produced in Solid Shaft.
  Ans: Bending moment in a solid shaft, M, is given by:
  M = (π/32) × σ × d³
  Where d = Diameter of the shaft
  σ = Bending stress
• Q39: State the formula of Equivalent Twisting Moment.
  Ans: Equivalent twisting moment, T_e, is given by:
  T_e = √(T² + M²)
  Where T = Torque
  M = Bending moment
• Q40: State the formula of Equivalent Bending Moment.
  Ans: Equivalent bending moment, M_e, is given by:
  M_e = √(M² + T²)
  Where M = Bending moment
  T = Torque
