HEAT TREATMENT PROCESS

Other Chapters

• Q1: Define Critical Temperature.
  Ans: Critical Temperature is the temperature at which steel undergoes a phase change, such as the transformation from ferrite to austenite or vice versa.
• Q2: What is Heat Treatment of Steel?
  Ans: Heat Treatment of Steel is the process of heating and cooling steel in a controlled way to alter its physical and mechanical properties like hardness, toughness, and strength.
• Q3: What is Cold Working?
  Ans: Cold Working is the process of shaping or deforming metals at room temperature to improve hardness and strength without heating.
• Q4: State the purpose of Heat Treatment.
  Ans: Purpose of Heat Treatment:

  • ➔ Increase hardness
  • ➔ Improve strength
  • ➔ Enhance toughness
  • ➔ Relieve internal stresses
  • ➔ Improve machinability
• Q5: What is Case Hardening?
  Ans: Case Hardening is a heat treatment process where only the surface layer of steel is hardened by adding carbon or nitrogen while keeping the core soft.
• Q6: Name the constituents of steel.
  Ans: Constituents of Steel:

  • ➔ Iron (Fe)
  • ➔ Carbon (C)
  • ➔ Manganese (Mn)
  • ➔ Sulfur (S)
  • ➔ Phosphorus (P)
  • ➔ Silicon (Si)
• Q7: What is Cementite?
  Ans: Cementite (Fe₃C) is a hard and brittle compound of iron and carbon found in steel, forming pearlite with ferrite.
• Q8: Define Allotropic Substance.
  Ans: An Allotropic Substance is a material that can exist in more than one crystalline form at different temperatures, like iron which forms ferrite, austenite, and delta ferrite.
• Q9: Define Crystalline Compounds.
  Ans: Crystalline Compounds are substances in which atoms or molecules are arranged in a regular, repeating three-dimensional structure.
• Q10: What is the role of heating rate on steel?
  Ans: Heating rate affects the microstructure of steel; rapid heating can lead to uneven austenite formation while slow heating ensures uniform transformation.

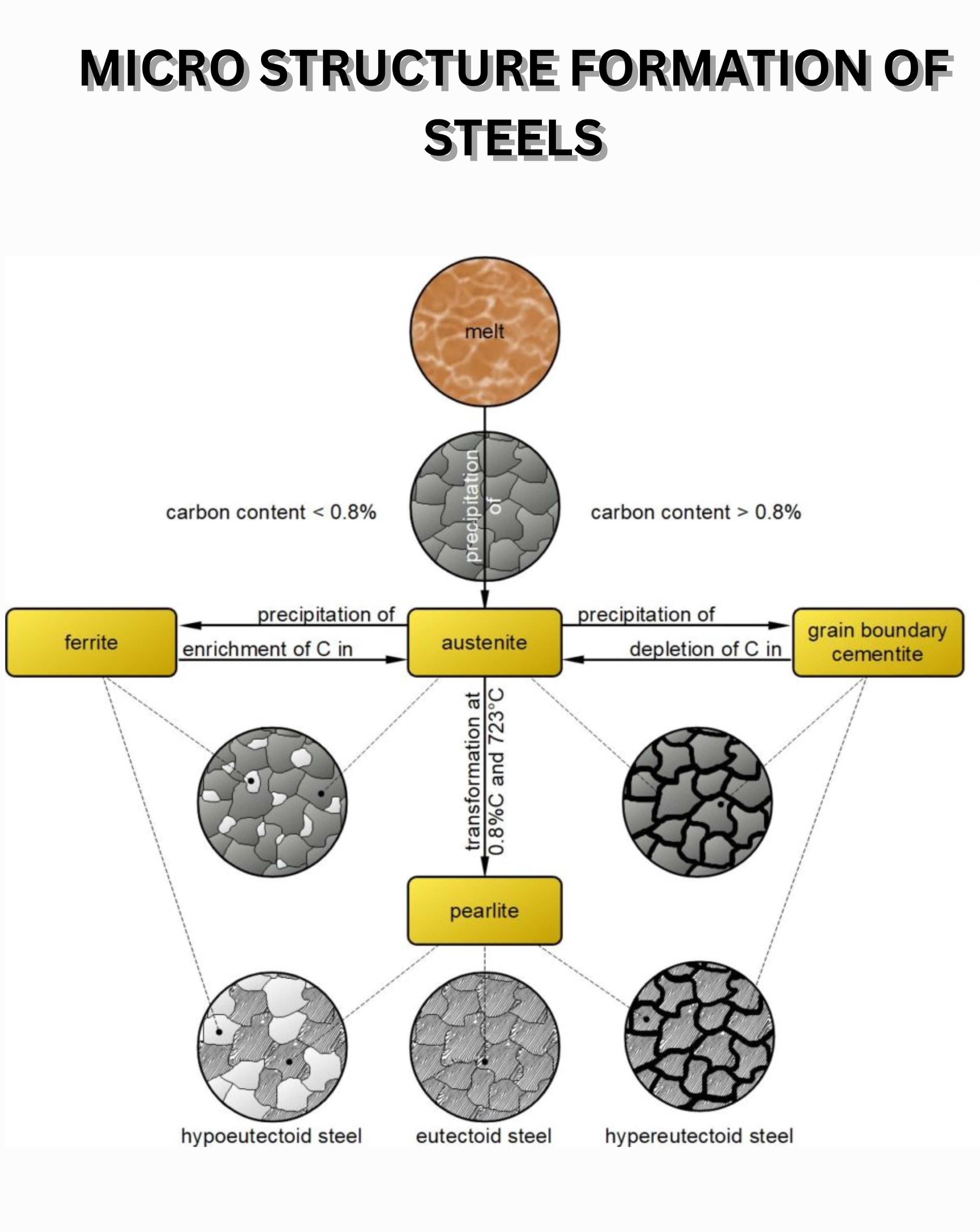

• Q11: Define Micro Structure.
  Ans: Microstructure is the structure of a material observed under a microscope, showing grains, phases, and defects.
• Q12: Define Macro Structure.
  Ans: Macrostructure is the structure of a material visible to the naked eye, showing overall grain patterns and surface features.
• Q13: What is the Austenite range?
  Ans: Austenite range is the temperature range in which steel transforms into austenite (γ-iron), typically between 727°C and 912°C for plain carbon steel.
• Q14: What is the Critical Temperature Line?
  Ans: The Critical Temperature Line on the Iron-Carbon diagram represents temperatures at which phase transformations occur in steel.
• Q15: What is Eutectoid Temperature?
  Ans: Eutectoid Temperature is the temperature (about 727°C) at which austenite transforms into pearlite in steel.
• Q16: State the importance of the rate of cooling of steel.
  Ans: Importance of Cooling Rate:

  • ➔ Controls hardness and strength
  • ➔ Determines microstructure (pearlite, bainite, martensite)
  • ➔ Prevents cracking or distortion
• Q17: State different methods of Cooling of steel.
  Ans: Methods of Cooling Steel:

  • ➔ Water Quenching
  • ➔ Air Cooling
  • ➔ Furnace Cooling
  • ➔ Fused Salt Cooling
  • ➔ Oil Quenching
• Q18: Briefly explain the Cooling of steel in Water.
  Ans: Procedure of Water Cooling:

  • ➔ Prepare the steel specimen.
  • ➔ Heat the steel to the desired austenitizing temperature.
  • ➔ Rapidly quench the steel in water.
  • ➔ Observe that hard and brittle structures like martensite are formed.
• Q19: Briefly explain the Cooling of steel in Air.
  Ans: Procedure of Air Cooling:

  • ➔ Heat the steel specimen to the required temperature.
  • ➔ Remove the steel from heat and allow it to cool slowly in air.
  • ➔ Soft microstructures like pearlite and ferrite are produced.
  • ➔ Internal stresses are minimal due to gradual cooling.
• Q20: Briefly explain the Cooling of steel in Furnace.
  Ans: Procedure of Furnace Cooling:

  • ➔ Heat the steel specimen to the desired temperature.
  • ➔ Turn off the furnace and let the steel cool slowly inside.
  • ➔ Very slow cooling produces soft microstructures.
  • ➔ This method is commonly used for annealing.
• Q21: Briefly explain the Cooling of steel in Fused Salt.
  Ans: Procedure of Fused Salt Cooling:

  • ➔ Heat the steel specimen to the required temperature.
  • ➔ Quench the steel in molten salts.
  • ➔ Achieves uniform cooling across the specimen.
  • ➔ Produces controlled hardness, ideal for large components.
• Q22: Briefly explain the Cooling of steel in Oil.
  Ans: Procedure of Oil Quenching:

  • ➔ Heat the steel specimen to the desired austenitizing temperature.
  • ➔ Quench the steel in oil to reduce the risk of cracking.
  • ➔ Moderate hardness and toughness are achieved.
  • ➔ Safer than water quenching for thicker sections.
• Q23: Define the process of Annealing.
  Ans: Annealing is a heat treatment process in which steel is heated to a specific temperature and then cooled slowly to soften the material, relieve stresses, and improve ductility.
• Q24: State the purpose of Annealing.
  Ans: Purpose of Annealing:

  • ➔ To soften steel for machining
  • ➔ To relieve internal stresses
  • ➔ To improve ductility and toughness
  • ➔ To refine grain structure
• Q25: Define Hardening.
  Ans: Hardening is a heat treatment process in which steel is heated to a high temperature and then rapidly cooled (quenched) to increase hardness and strength.
• Q26: State the purpose of Hardening.
  Ans: Purpose of Hardening:

  • ➔ To increase hardness
  • ➔ To improve wear resistance
  • ➔ To enhance strength
• Q27: State the steps taken for Hardening.
  Ans: Steps for Hardening:

  • ➔ Heating steel to austenitizing temperature
  • ➔ Holding at that temperature for uniform heating
  • ➔ Rapidly quenching in water, oil, or another medium
  • ➔ Optionally tempering to reduce brittleness
• Q28: What is Martensite?
  Ans: Martensite is a hard, brittle microstructure formed in steel when austenite is rapidly quenched, having a body-centered tetragonal (B.C.T) crystal structure.
• Q29: What is B.C.T?
  Ans: B.C.T (Body-Centered Tetragonal) is a crystal structure of martensite in steel where atoms are arranged in a tetragonal lattice.
• Q30: Define Quenching.
  Ans: Quenching is the rapid cooling of heated steel in water, oil, or other media to form hard microstructures like martensite.
• Q31: State the purpose of Quenching.
  Ans: Purpose of Quenching:

  • ➔ To increase hardness
  • ➔ To improve strength
  • ➔ To achieve desired microstructure (martensite)
• Q32: State different media used for Quenching.
  Ans: Quenching Media:

  • ➔ Water
  • ➔ Oil
  • ➔ Air (for slow cooling)
  • ➔ Fused salts
  • ➔ Brine solution
• Q33: Name the Ideal Quenching medium.
  Ans: Oil is considered an ideal quenching medium as it provides moderate cooling rate, reducing cracks while achieving hardness.
• Q34: What is the Vapor Blanket Stage?
  Ans: Vapor Blanket Stage is the initial stage of quenching where a vapor layer forms around the hot steel, slowing cooling temporarily.
• Q35: What is the Vapor Transport Stage?
  Ans: Vapor Transport Stage is the stage during quenching when bubbles collapse and heat transfer increases, accelerating cooling.
• Q36: What is the Liquid Cooling Stage?
  Ans: Liquid Cooling Stage is the final stage of quenching when the steel is fully immersed in the liquid medium and rapid cooling occurs.
• Q37: Define Tempering.
  Ans: Tempering is a heat treatment process in which hardened steel is reheated to a moderate temperature and cooled to reduce brittleness and improve toughness.
• Q38: State the purpose of Tempering.
  Ans: Purpose of Tempering:

  • ➔ To reduce brittleness of hardened steel
  • ➔ To improve toughness and ductility
  • ➔ To relieve internal stresses
• Q39: State the process of Tempering.
  Ans: Tempering Process:

  • ➔ Hardened steel is reheated to a temperature below critical point
  • ➔ Held for a specific time
  • ➔ Cooled slowly in air or furnace
• Q40: Briefly explain the structural changes during Tempering.
  Ans: During tempering, martensite transforms partially into ferrite and cementite, reducing hardness but increasing toughness and relieving internal stresses.
• Q41: What is Temper Brittleness?
  Ans: Temper Brittleness is the loss of toughness in steel when tempered at certain temperatures (around 230 — 270°C) due to formation of brittle structures.
• Q42: What is notched Bar Toughness?
  Ans: Notched Bar Toughness is the ability of a material to resist fracture when a notch is present, measured by impact tests like Charpy or Izod.
• Q43: Define Metallography.
  Ans: Metallography is the study of the microstructure of metals and alloys using optical or electron microscopes to understand their properties and behavior.
