COORDINATE MEASURING MACHINE

Other Chapters

• Q1: What is a Coordinate Measuring Machine?
  Ans: A Coordinate Measuring Machine (CMM) is a device used to measure the physical dimensions of an object accurately by using coordinate points.
• Q2: State the uses of Coordinate Measuring Machine.
  Ans: Uses of Coordinate Measuring Machine are:

  • ➔ Measuring dimensions of components
  • ➔ Checking quality and accuracy
  • ➔ Inspection of complex shapes
  • ➔ Reverse engineering

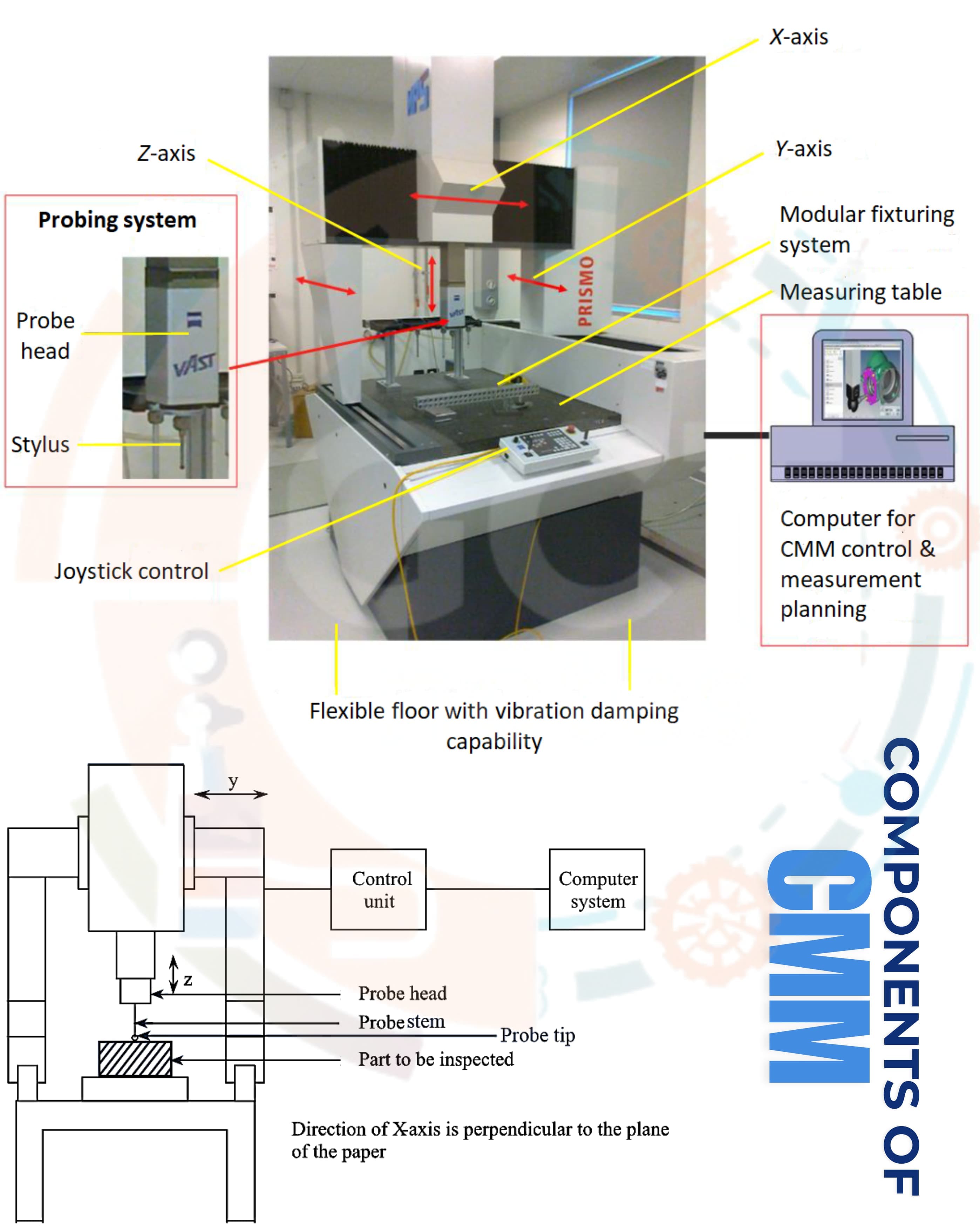

• Q3: State the main components of a Coordinate Measuring Machine.
  Ans: The main components of a Coordinate Measuring Machine are as follows:

  • ➔ Main structure (including axis of motion)
  • ➔ Probing System
  • ➔ Data Collection and Reduction System
• Q4: State the parts of a Coordinate Measuring Machine.
  Ans: The parts of a Coordinate Measuring Machine are:

  • ➔ Base Table
  • ➔ Bridge Structure
  • ➔ Column
  • ➔ Probe
  • ➔ Controller System
• Q5: What are Coordinates?
  Ans: Coordinates are numerical values used to define the position of a point in space with respect to reference axes (X, Y, Z).
• Q6: State the uses of Coordinates.
  Ans: Uses of coordinates are:

  • ➔ To locate positions of points
  • ➔ To measure dimensions accurately
  • ➔ To define shapes and geometry
  • ➔ To assist in design and manufacturing
• Q7: What is a 3D Scanner?
  Ans: A 3D scanner is a device used to capture the shape and size of an object and convert it into a digital 3D model.
• Q8: State the uses of 3D Scanner.
  Ans: Uses of 3D scanner are:

  • ➔ Creating 3D models of objects
  • ➔ Reverse engineering
  • ➔ Quality inspection
  • ➔ Product design and development
• Q9: State the working principle of a 3D Scanner.
  Ans: A 3D scanner works by projecting light or laser onto an object.
  The reflected light is captured by sensors.
  The data is processed to create a digital 3D model of the object.
• Q10: What does CMM stand for?
  Ans: CMM stands for Coordinate Measuring Machine.
• Q11: What is Reverse Engineering?
  Ans: Reverse engineering is the process of analyzing an existing object to understand its design and then recreating it.
