GRINDING OPERATIONS

Other Chapters

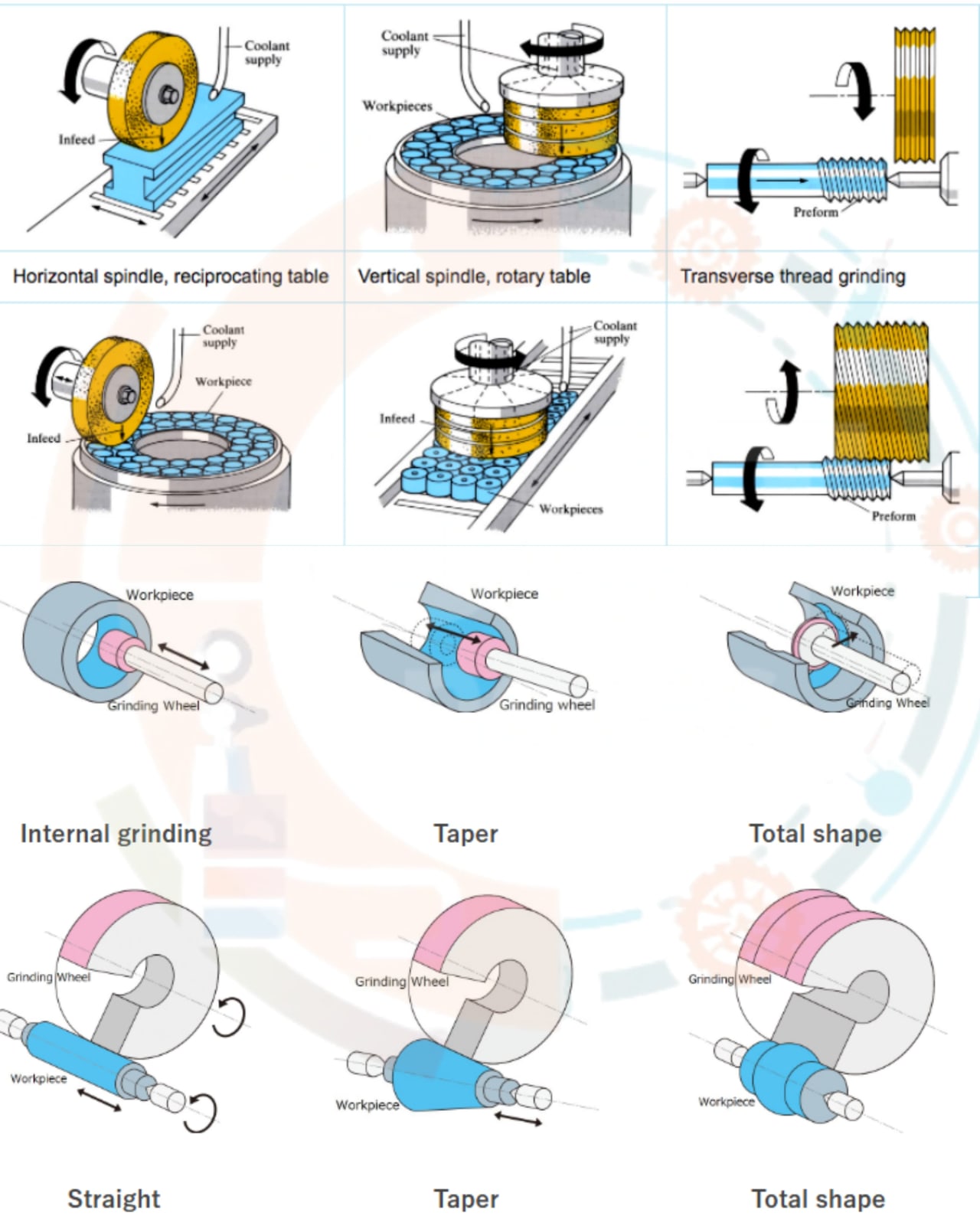

• Q1: State some Grinding Operations.
  Ans: Grinding Operations include:

  • ➔ Surface Grinding
  • ➔ Cylindrical Grinding
  • ➔ Internal Grinding
  • ➔ Form Grinding
  • ➔ Centerless Grinding
  • ➔ Twist Drill Grinding
  • ➔ Milling Cutter Grinding
• Q2: What is Surface Grinding Operation?
  Ans: Surface Grinding Operation is the process of producing flat or smooth surfaces on a workpiece using a rotating abrasive wheel. The workpiece is usually held on a magnetic or mechanical table.
• Q3: What is Cylindrical Grinding Operation?
  Ans: Cylindrical Grinding Operation involves grinding the external or internal cylindrical surfaces of a workpiece using a rotating abrasive wheel while the workpiece rotates on centers or in a chuck.
• Q4: What is Internal Grinding Operation?
  Ans: Internal Grinding Operation is used to grind the internal surface of a hole or cylindrical bore. The grinding wheel rotates inside the workpiece, producing precise diameters and finishes.
• Q5: What is Form Grinding Operation?
  Ans: Form Grinding Operation is the process of grinding complex shapes or profiles on a workpiece using a specially shaped grinding wheel.
• Q6: What is Centerless Grinding Operation?
  Ans: Centerless Grinding Operation is a method of grinding cylindrical surfaces without centers. The workpiece is supported by a rest blade and rotated between a grinding wheel and a regulating wheel.
• Q7: What is Twist Drill Grinding?
  Ans: Twist Drill Grinding is the process of sharpening or shaping twist drills to restore cutting edges and maintain proper point geometry.
• Q8: What is Milling Cutter Grinding?
  Ans: Milling Cutter Grinding is the process of sharpening or shaping milling cutters using a grinding machine to maintain cutting efficiency and accuracy.
• Q9: What is Drill Point Gauge?
  Ans: A Drill Point Gauge is a tool used to measure the point angle, lip angle, and chisel edge of a drill to ensure proper geometry for accurate drilling.
• Q10: Enlist the materials for which Light Oil is used as a coolant.
  Ans: Light Oil is used as a coolant for:

  • ➔ Cast Iron
  • ➔ Mild Steel
  • ➔ Low Carbon Steels
• Q11: Enlist the materials for which Emulsifiable Oil is used as a coolant.
  Ans: Emulsifiable Oil is used as a coolant for:

  • ➔ Alloy Steels
  • ➔ High Carbon Steels
  • ➔ Non-Ferrous Metals
• Q12: Enlist the materials for which Synthetic Oil is used as a coolant.
  Ans: Synthetic Oil is used as a coolant for:

  • ➔ High-speed Steel
  • ➔ Hard alloys
  • ➔ Non-ferrous metals requiring chemical stability
• Q13: Enlist the materials suitable for Dry Grinding.
  Ans: Dry Grinding is suitable for:

  • ➔ Hardened Steels
  • ➔ Cast Iron
  • ➔ Non-ferrous metals in small quantities
  • ➔ Materials where coolant is not required or may react chemically
