MILLING OPERATIONS

Other Chapters

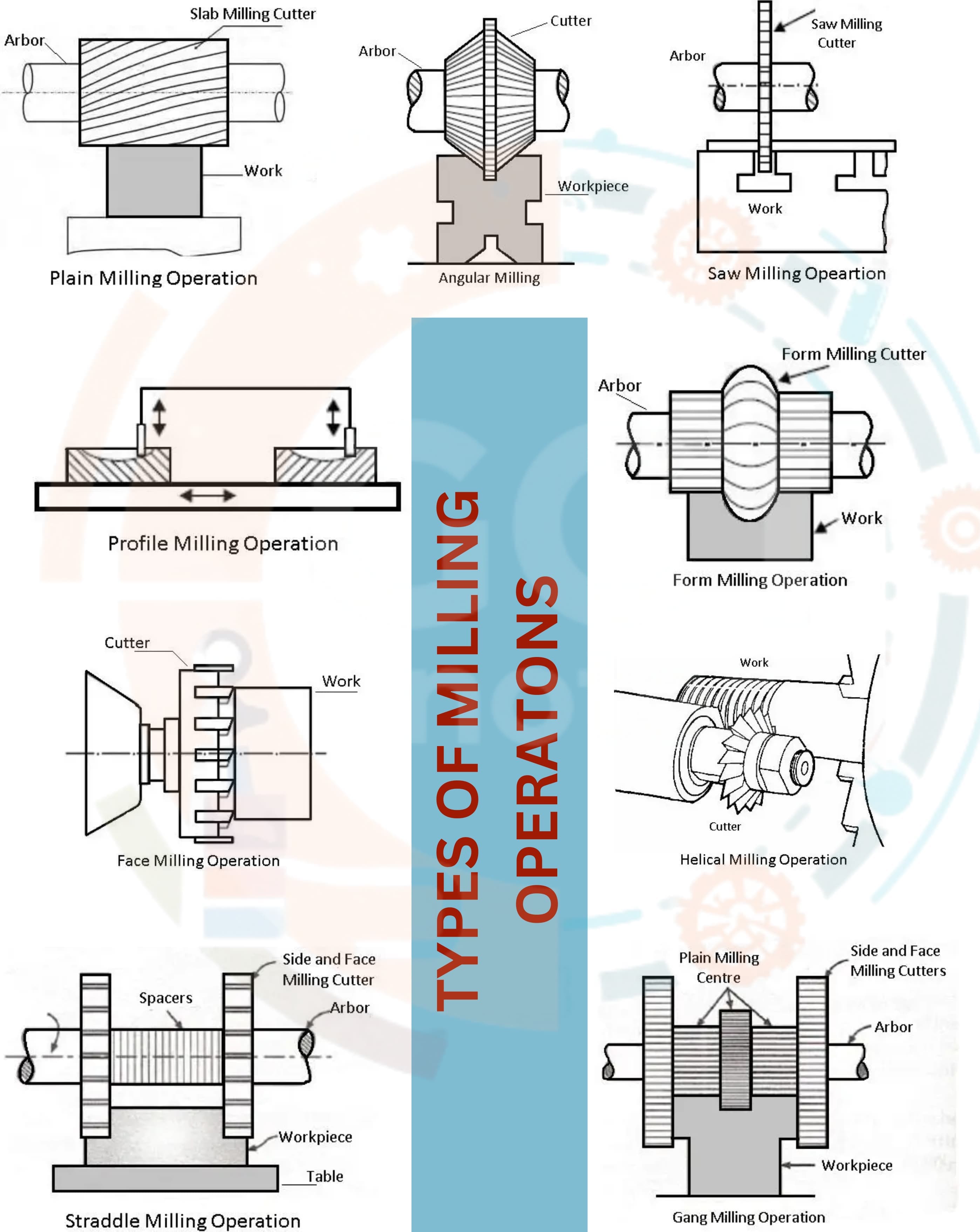

• Q1: Name some Milling Operations.
  Ans: The milling operations are as follows:

  • ➔ Plain Milling
  • ➔ Side Milling
  • ➔ End Milling
  • ➔ Slotting
  • ➔ Sawing
  • ➔ Straddle Milling
  • ➔ Gang Milling
  • ➔ Gear Cutting
  • ➔ Climb Milling
  • ➔ Conventional Milling
• Q2: Briefly explain Climb and Conventional Milling Operation.
  Ans: Climb Milling:
  In climb milling, the cutter rotates in the same direction as the feed of the workpiece.
  The cutting starts with maximum thickness and ends with minimum thickness.
  It gives a better surface finish.

  Conventional Milling:
  In conventional milling, the cutter rotates opposite to the feed direction.
  The cutting starts with minimum thickness and increases.
  It is safer for rough surfaces.
• Q3: Briefly explain Plain Milling Operation.
  Ans: Plain milling is used to produce flat surfaces.
  The cutter rotates on a horizontal axis.
  The workpiece is fed against the cutter.
  Material is removed layer by layer to produce a smooth flat surface.
• Q4: Briefly explain Side Milling Operation.
  Ans: Side milling is used to machine the sides of a workpiece.
  A side milling cutter is used.
  The cutter removes material from the side surfaces.
  It is used for cutting slots and grooves.
• Q5: Briefly explain End Milling Operation.
  Ans: End milling is used for cutting slots, grooves, and complex shapes.
  The cutter rotates vertically.
  Cutting is done by both end and side teeth.
  It is widely used for precision work.
• Q6: Briefly explain Slotting Milling Operation.
  Ans: Slotting is used to cut narrow slots or keyways.
  A slotting cutter is used.
  The cutter rotates and the workpiece is fed slowly.
  It produces accurate slots in the material.
• Q7: Briefly explain Sawing Milling Operation.
  Ans: Sawing milling is used to cut off material or make narrow cuts.
  A slitting saw cutter is used.
  The cutter rotates at high speed.
  It works like a saw and cuts through the workpiece.
• Q8: Briefly explain Straddle Milling Operation.
  Ans: Straddle milling uses two side milling cutters mounted on the same arbor.
  Both cutters machine two parallel surfaces at the same time.
  It increases productivity and accuracy.
• Q9: Briefly explain Gang Milling Operation.
  Ans: Gang milling uses multiple cutters mounted on one arbor.
  Several operations are performed in one pass.
  It saves time and increases production rate.
• Q10: Briefly explain Gear Cutting Milling Operation.
  Ans: Gear cutting milling is used to produce gear teeth.
  A special gear cutter is used.
  The gear blank is rotated step by step.
  Each tooth is cut accurately to form a gear.
